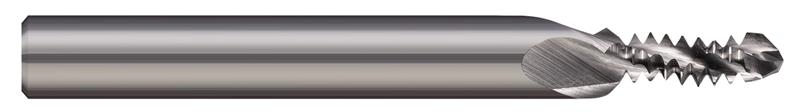

0.1596 in. Drill Diameter x 0.4681 in. Length of Cut 3 Flute Carbide Multi-Form 10-32 Combination Drill/Thread Mill

  • Item Code: 820636
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.4681"
End Length 0.0828"
Size Oct-32
Minor Diameter 0.0995"
Chamfer Length 0.0284"
Coating/Finish None
Drill Length 0.0312" (1/32)
Material Solid Carbide
Number of Flutes 3
Overall Length 2.0000" (2)
Included Angle 90
Length of Cut Multiple (3x)
Brand Harvey Tool
Drill Diameter Decimal 0.1596"
Angle per Side 45
Cutter Diameter Decimal 0.1200"
Point Angle 130
Secondary Point Angle 90
Shank Diameter 0.2500" (1/4)
Weldon Flat N
