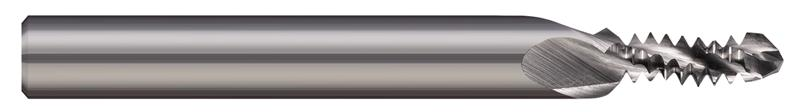

0.2584 in. Drill Diameter x 0.8750 in. (7/8) Length of Cut 3 Flute Carbide Multi-Form 5/16-18 Combination Drill/Thread Mill

  • Item Code: 820654
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Drill Diameter Decimal 0.2584"
Chamfer Length 0.0427"
Length of Cut 0.8750" (7/8)
Weldon Flat N
Angle per Side 45
Point Angle 130
End Length 0.1372"
Included Angle 90
Size 5/16/2018
Number of Flutes 3
Overall Length 2.5000" (2-1/2)
Length of Cut Multiple (3x)
Minor Diameter 0.1671"
Secondary Point Angle 90
Brand Harvey Tool
Coating/Finish None
Material Solid Carbide
Cutter Diameter Decimal 0.2400"
Drill Length 0.0555"
Shank Diameter 0.3750" (3/8)
