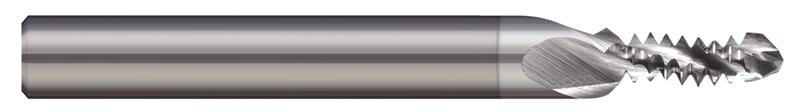

0.2719 in. Drill Diameter x 0.8248 in. Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 5/16-24 Combination Drill/Thread Mill

  • Item Code: 820656-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Drill Diameter Decimal 0.2719"
Chamfer Length 0.0345"
Size 5/16/2024
End Length 0.1224"
Minor Diameter 0.1985"
Shank Diameter 0.3750" (3/8)
Coating/Finish TiB2
Cutter Diameter Decimal 0.2400"
Included Angle 90
Length of Cut Multiple (3x)
Angle per Side 45
Length of Cut 0.8248"
Point Angle 130
Secondary Point Angle 90
Weldon Flat N
Material Solid Carbide
Drill Length 0.0416"
Number of Flutes 3
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
