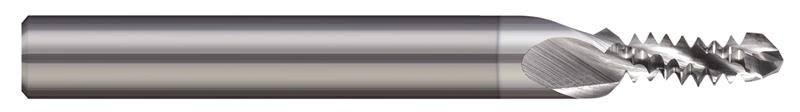

0.3141 in. Drill Diameter x 1.0190 in. Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 3/8-16 Combination Drill/Thread Mill

  • Item Code: 820664-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Minor Diameter 0.2140"
Chamfer Length 0.0468"
Size 3/8/2016
Drill Length 0.0625" (1/16)
Coating/Finish TiB2
Shank Diameter 0.5000" (1/2)
Secondary Point Angle 90
Included Angle 90
Brand Harvey Tool
End Length 0.1592"
Overall Length 3.0000" (3)
Length of Cut Multiple (3x)
Weldon Flat N
Cutter Diameter Decimal 0.2850"
Drill Diameter Decimal 0.3141"
Number of Flutes 3
Point Angle 130
Angle per Side 45
Length of Cut 1.0190"
Material Solid Carbide
