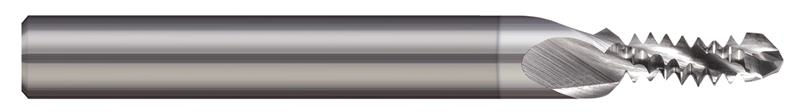

0.3888 in. Drill Diameter x 1.1540 in. Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 7/16-20 Combination Drill/Thread Mill

  • Item Code: 820676-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Minor Diameter 0.3047"
End Length 0.1605"
Coating/Finish TiB2
Number of Flutes 3
Secondary Point Angle 90
Brand Harvey Tool
Overall Length 3.5000" (3-1/2)
Shank Diameter 0.5000" (1/2)
Material Solid Carbide
Angle per Side 45
Cutter Diameter Decimal 0.3350"
Drill Diameter Decimal 0.3888"
Drill Length 0.0500"
Included Angle 90
Length of Cut 1.1540"
Length of Cut Multiple (3x)
Weldon Flat N
Point Angle 130
Chamfer Length 0.0394"
Size 7/16/2020
