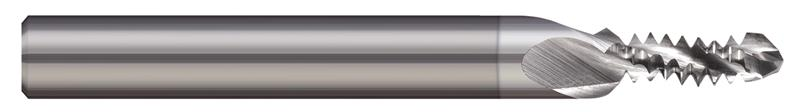

0.4251 in. Drill Diameter x 1.2790 in. Length of Cut 3 Flute TiB2 Coated Carbide Multi-Form 1/2-13 Combination Drill/Thread Mill

  • Item Code: 820684-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for combined drilling, threading, thread relief cutting, and chamfering
    • One cutter for 4 different operations saves time on tool changes and leaves more room in the tool carousel
    • Length of cut includes transition angle, allowing for optional 45 degree chamfer pass
    • Optimized for cutting non-ferrous materials such as aluminum, unfulfilled plastics, copper, brass, and bronze alloys
    • Recommended for cutting, threading and chamfering though holes
    • 3 flutes to center
    • Cuts internal 60??UN threads
    • 90 degree included back chamfer
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Minor Diameter 0.3064"
Chamfer Length 0.0553"
Coating/Finish TiB2
Number of Flutes 3
Point Angle 130
Brand Harvey Tool
Length of Cut 1.2790"
Overall Length 3.5000" (3-1/2)
Drill Length 0.0769"
Material Solid Carbide
Cutter Diameter Decimal 0.3500"
Drill Diameter Decimal 0.4251"
Secondary Point Angle 90
Weldon Flat N
Angle per Side 45
Included Angle 90
Size 1/2/2013
End Length 0.2036"
Length of Cut Multiple (3x)
Shank Diameter 0.6250" (5/8)
