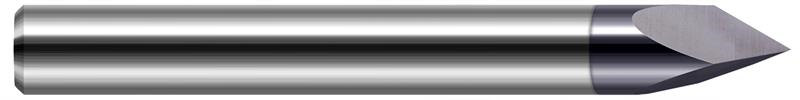

0.1875 in. (3/16) Shank Diameter x 30 Deg. Included AlTiN Coated Carbide Pyramid Point Engraver

  • Item Code: 822015-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 3 facet design increases tip strength
    • Ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating AlTiN
Included Angle 30
Length of Cut 0.3500"
Material Solid Carbide
Shank Diameter Fractional 3/16"
Brand Harvey Tool
Angle per Side 15
Overall Length 2.0000" (2)
Weldon Flat N
Shank Diameter Decimal 0.1875"
