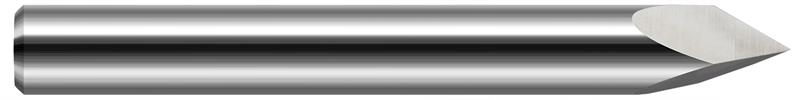

0.1875 in. (3/16) Shank Diameter x 60 Deg. Included Carbide Pyramid Point Engraver

  • Item Code: 822030
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 3 facet design increases tip strength
    • Ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Weldon Flat N
Angle per Side 30
Included Angle 60
Material Solid Carbide
Coating None
Overall Length 2.0000" (2)
Brand Harvey Tool
Shank Diameter Decimal 0.1875"
Length of Cut 0.1620"
Shank Diameter Fractional 3/16"
