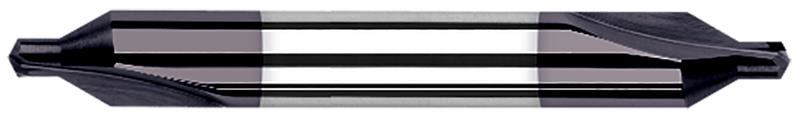

0.1094 in. (7/64) Drill Diameter x 120 Deg. Included 2 Flute AlTiN Coated Carbide #3 Double Ended Drill and Countersink

  • Item Code: 822550-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 120
Drill Length 0.1090" (7/64)
Coating/Finish AlTiN
Decimal Diameter 0.1094"
Length of Cut 0.1820"
Shank Diameter 0.2500" (1/4)
Weldon Flat N
Fractional Diameter 7/64"
Single/Double End Double End
Chip Breaker N
Material Solid Carbide
Number of Flutes 2
Overall Length Decimal 2.0000"
Point Angle 118
Wire Diameter #3
Angle per Side 60
Brand Harvey Tool
Coolant Through N
Overall Length Fractional 2"
