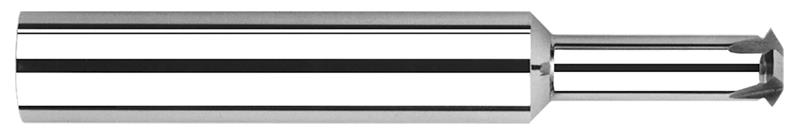

0.1800 in. Cutter Diameter x 0.6250 in. (5/8) Reach 4 Flute Carbide Single Form #1/4 Thread Milling Cutter

  • Item Code: 822750
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill any pitch
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Decimal 0.1800"
Brand Harvey Tool
Maximum Depth of Thread 0.6250" (5/8)
Shank Diameter 0.2500" (1/4)
Weldon Flat N
Coolant Through N
Number of Flutes 4
Overall Length 2.5000" (2-1/2)
Single/Double End Single End
Included Angle 60
Angle per Side 30
Center Cutting N
Chip Breaker N
Coating/Finish None
Material Solid Carbide
Neck Diameter 0.1150"
Size 4-Jan
Length of Cut 0.0380"
