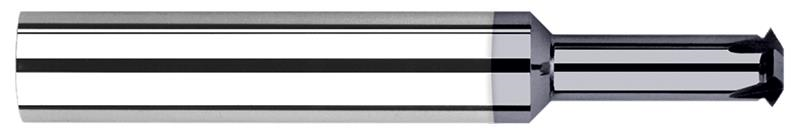

0.2400 in. Cutter Diameter x 0.6250 in. (5/8) Reach 4 Flute AlTiN Coated Carbide Single Form #5/16 Thread Milling Cutter

  • Item Code: 822755-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill any pitch
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Brand Harvey Tool
Coolant Through N
Cutter Diameter Decimal 0.2400"
Single/Double End Single End
Size 16-May
Maximum Depth of Thread 0.6250" (5/8)
Shank Diameter 0.2500" (1/4)
Chip Breaker N
Length of Cut 0.0460"
Neck Diameter 0.1600"
Center Cutting N
Weldon Flat N
Overall Length 2.5000" (2-1/2)
Angle per Side 30
Included Angle 60
Material Solid Carbide
Number of Flutes 4
