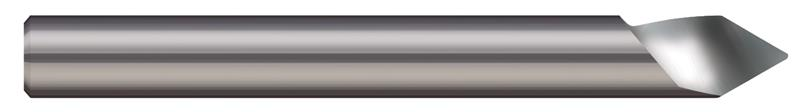

0.1250 in. (1/8) Shank Diameter x 0.0100 in. Flat x 60 Deg. Included 1 Flute Carbide Helical Tipped Engraver

  • Item Code: 824708
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Included Angle 60
Material Solid Carbide
Brand Harvey Tool
Coating None
Length of Cut 0.1000"
Weldon Flat N
Number of Flutes 1
Type II
Flat on Part 0.0100"
Shank Diameter Decimal 0.1250"
Shank Diameter Fractional 1/8"
Split Length 0.0625" (1/16)
Overall Length 1.5000" (1-1/2)
