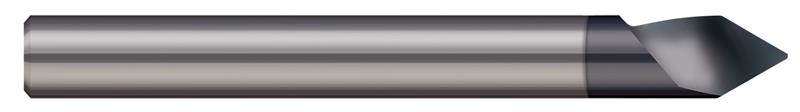

0.1875 in. (3/16) Shank Diameter x 0.0100 in. Flat x 60 Deg. Included 1 Flute AlTiN Coated Carbide Helical Tipped Engraver

  • Item Code: 824712-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.1540"
Coating AlTiN
Included Angle 60
Overall Length 2.0000" (2)
Shank Diameter Decimal 0.1875"
Split Length 0.0938"
Type II
Weldon Flat N
Number of Flutes 1
Angle per Side 30
Flat on Part 0.0100"
Material Solid Carbide
Shank Diameter Fractional 3/16"
Brand Harvey Tool
