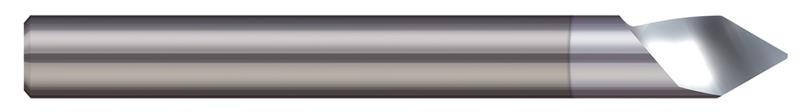

0.1875 in. (3/16) Shank Diameter x 0.0100 in. Flat x 60 Deg. Included 1 Flute TiB2 Coated Carbide Helical Tipped Engraver

  • Item Code: 824712-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized geometry for superior engraving in softer materials such as plastics and aluminum
    • Free cutting action provides excellent surface finish and chip evacuation
    • Tipped-off end diameter for improved cutting action
    • Right hand spiral, right hand cut
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 30
Brand Harvey Tool
Flat on Part 0.0100"
Material Solid Carbide
Split Length 0.0938"
Type II
Overall Length 2.0000" (2)
Included Angle 60
Coating TiB2
Length of Cut 0.1540"
Shank Diameter Decimal 0.1875"
Number of Flutes 1
Shank Diameter Fractional 3/16"
