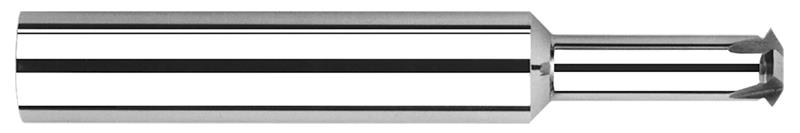

1.160 mm Cutter Diameter x 5.600 mm Reach 2 Flute Carbide Single Form M1.6 Thread Milling Cutter

  • Item Code: 826516
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill multiple pitches
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Metric 1.16 mm
Size M1.6
Angle per Side 30
Material Solid Carbide
Maximum Depth of Thread 5.600 mm
Overall Length 38.000 mm
Neck Diameter 0.696 mm
Number of Flutes 2
Included Angle 60
Reach Multiple (8x)
Shank Diameter 3.000 mm
Brand Harvey Tool
Length of Cut 0.268 mm
Coating/Finish None
