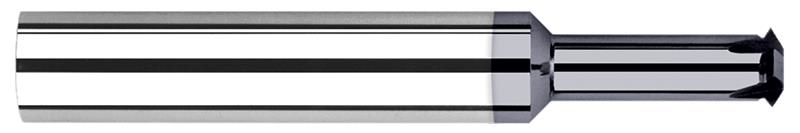

2.300 mm Cutter Diameter x 11.000 mm Reach 4 Flute AlTiN Coated Carbide Single Form M3 Thread Milling Cutter

  • Item Code: 826524-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Single thread form can mill multiple pitches
    • Cuts internal and external 60 degree UN threads
    • Mills right hand and left hand threads
    • Tip of included angle ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Maximum Depth of Thread 11.000 mm
Center Cutting N
Coolant Through N
Length of Cut 0.531 mm
Overall Length 38.000 mm
Single/Double End Single End
Weldon Flat N
Angle per Side 30
Chip Breaker N
Coating/Finish AlTiN
Included Angle 60
Material Solid Carbide
Neck Diameter 1.380 mm
Reach Multiple (8x)
Brand Harvey Tool
Size M3
Number of Flutes 4
Shank Diameter 3.000 mm
Cutter Diameter Metric 2.30 mm
