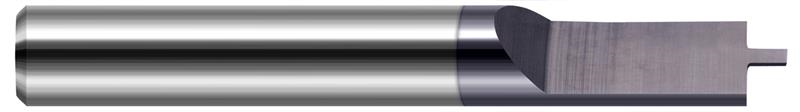

0.1875 in. (3/16) Shank Diameter x 0.0600 in. Flat x 0 Deg. Included 1 Flute AlTiN Coated Carbide Square Parallel Engraver

  • Item Code: 827260-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Engraves a 90 degree vertical wall
    • Flat (F) represents flat generated in workpiece
    • Half-round drill style
    • Non-cutting transition radius at end of length of cut
    • Relieved for right hand milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Length of Cut 0.0900"
Number of Flutes 1
Split Length 0.3750" (3/8)
Material Solid Carbide
Coating AlTiN
Shank Diameter Fractional 3/16"
Angle per Side 0
Overall Length 2.0000" (2)
Shank Diameter Decimal 0.1875"
Weldon Flat N
Flat on Part 0.0600"
Included Angle 0
