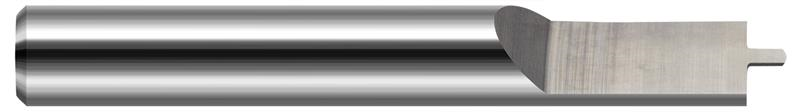

0.1250 in. (1/8) Shank Diameter x 0.0450 in. Radius x 0 Deg. Included 1 Flute Carbide Ball Parallel Engraver

  • Item Code: 828590
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Engraves a 90 degree vertical wall
    • Radius on tip creates radius in the bottom of groove and improves strength
    • Half-round drill style
    • Non-cutting transition radius at end of length of cut
    • Relieved for right hand milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.1350"
Material Solid Carbide
Radius Decimal 0.0450"
Shank Diameter Decimal 0.1250"
Overall Length 1.5000" (1-1/2)
Weldon Flat N
Coating None
Brand Harvey Tool
Number of Flutes 1
Split Length 0.3750" (3/8)
Angle per Side 0
Shank Diameter Fractional 1/8"
Included Angle 0
