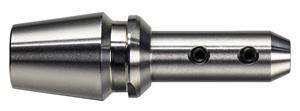

0.1250" (1/8) Bore Diameter x 9.500 mm Shaft Diameter x 16.000 mm Projection Length x ER16 Taper Solid ER Integrated Tool Holder

  • Item Code: 83001
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reached taper integrated holder that eliminates the need for multiple spindle accessories
    • Designed for Turn Mill Centers and Machining Centers
    • Works with any ER holder or spindle
    • Multiple reaches
    • Maximum T.I.R. of <.0002"
    • Capable of quick change with included stop screw
    • Stop screw can be adjusted from both ends of holder

Tech Specs

Back To Top
Minimum Bore Diameter 0.1250" (1/8)
Overall Length 1.6330"
Neck Diameter 9.500 mm
Brand Harvey Tool
Single/Double End Single End
Type ER16
Chip Breaker N
Coating/Finish None
Coolant Through N
Product Type ER
Overall Reach 16.000 mm
Weldon Flat N
Center Cutting N
