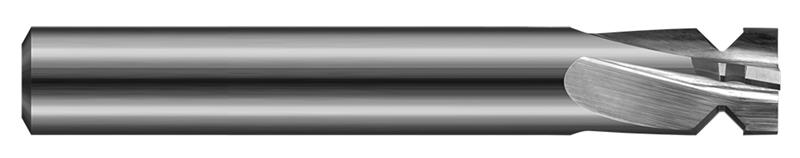

0.5000 in. (1/2) Cutter Diameter x 0.3770 in. Length of Cut 4 Flute Carbide Picatinny Rail Form Cutters

  • Item Code: 830032
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the MIL-STD-1913 specifications
    • Mill the entire Picatinny Rail in a single pass without tool changes
    • Cutting on the entirety of concave form and OD flat at end
    • 4 helical flutes for better cutting action
    • .005" max radii for all internal corners
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Fractional 1/2"
Minor Diameter 0.2820"
Brand Harvey Tool
Chip Breaker N
Coating/Finish None
Material Solid Carbide
Length of Cut 0.3770"
Angle per Side 45
Center Cutting N
Coolant Through N
Overall Length 3.0000" (3)
Shank Diameter 0.5000" (1/2)
Single/Double End Single End
Weldon Flat N
Type II
Minimum Opening Width 0.0210"
Cutter Diameter Decimal 0.5000"
End Length 0.1370"
Number of Flutes 4
Radius Decimal 0.0050"
Included Angle 90
