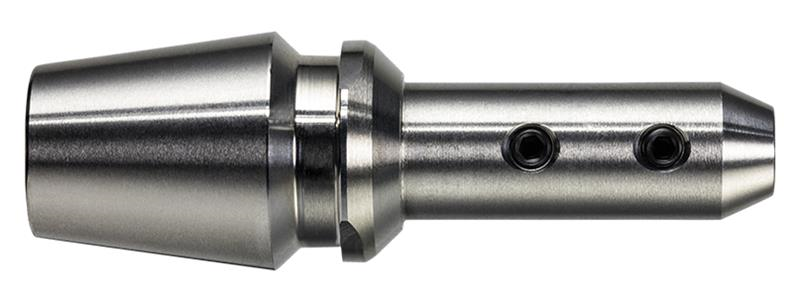

0.2500" (1/4) Bore Diameter x 12.500 mm Shaft Diameter x 25.000 mm Projection Length x ER20 Taper Solid ER Integrated Tool Holder

  • Item Code: 83006
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reached taper integrated holder that eliminates the need for multiple spindle accessories
    • Designed for Turn Mill Centers and Machining Centers
    • Works with any ER holder or spindle
    • Multiple reaches
    • Maximum T.I.R. of <.0002"
    • Capable of quick change with included stop screw
    • Stop screw can be adjusted from both ends of holder

Tech Specs

Back To Top
Overall Length 2.1940"
Overall Reach 25.000 mm
Neck Diameter 12.500 mm
Minimum Bore Diameter 0.2500" (1/4)
Center Cutting N
Weldon Flat N
Product Type ER
Single/Double End Single End
Brand Harvey Tool
Chip Breaker N
Coating/Finish None
Coolant Through N
Type ER20
