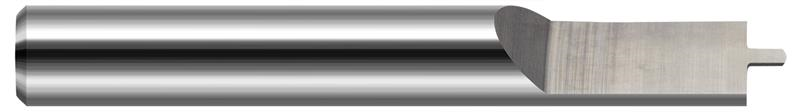

0.1875 in. (3/16) Shank Diameter x 0.0300 in. Radius x 0 Deg. Included 1 Flute Carbide Ball Parallel Engraver

  • Item Code: 832660
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Engraves a 90 degree vertical wall
    • Radius on tip creates radius in the bottom of groove and improves strength
    • Half-round drill style
    • Non-cutting transition radius at end of length of cut
    • Relieved for right hand milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Angle per Side 0
Overall Length 2.0000" (2)
Weldon Flat N
Coating None
Included Angle 0
Number of Flutes 1
Split Length 0.3750" (3/8)
Shank Diameter Fractional 3/16"
Material Solid Carbide
Shank Diameter Decimal 0.1875"
Length of Cut 0.0900"
Radius Decimal 0.0300"
Brand Harvey Tool
