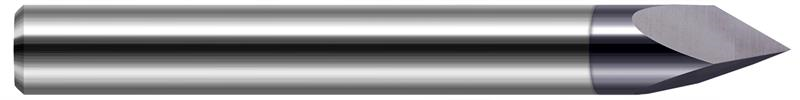

0.2500 in. (1/4) Shank Diameter x 40 Deg. included AlTiN Coated Carbide Pyramid Point Engraver

  • Item Code: 834020-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 3 facet design increases tip strength
    • Ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating AlTiN
Shank Diameter Decimal 0.2500"
Shank Diameter Fractional 1/4"
Material Solid Carbide
Angle per Side 20
Length of Cut 0.3430" (11/32)
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Included Angle 40
