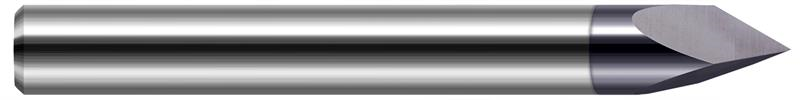

0.2500 in. (1/4) Shank Diameter x 45 Deg. Included AlTiN Coated Carbide Pyramid Point Engraver

  • Item Code: 834023-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 3 facet design increases tip strength
    • Ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating AlTiN
Brand Harvey Tool
Included Angle 45
Material Solid Carbide
Shank Diameter Decimal 0.2500"
Angle per Side 22.5
Shank Diameter Fractional 1/4"
Overall Length 2.5000" (2-1/2)
Length of Cut 0.3020"
Weldon Flat N
