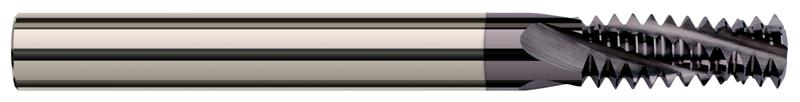

0.0850 in. Cutter Diameter x 0.1800 in. Length of Cut 3 Flute AlTiN Nano Coated Carbide Multi-Form 4-40 Thread Milling Cutter for Hardened Steels

  • Item Code: 836716-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 46-68 Rc
    • Cuts internal and external 60 degree UN threads
    • Mill right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Variable helix design reduces chatter and harmonics and produces more accurate threads
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Size 4-40
Center Cutting N
Coolant Through N
Single/Double End Single End
Weldon Flat N
Number of Flutes 3
Overall Length 2.0000" (2)
Chip Breaker N
Coating/Finish AlTiN Nano
Cutter Diameter Decimal 0.0850"
Included Angle 60
Material Solid Carbide
Brand Harvey Tool
Shank Diameter 0.1250" (1/8)
Length of Cut 0.1800"
