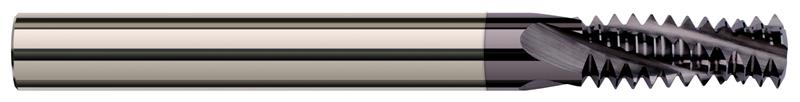

0.1000 in. Cutter Diameter x 0.2180 in. (7/32) Length of Cut 3 Flute AlTiN Nano Coated Carbide Multi-Form 6-32 Thread Milling Cutter for Hardened Steels

  • Item Code: 836722-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 46-68 Rc
    • Cuts internal and external 60 degree UN threads
    • Mill right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Variable helix design reduces chatter and harmonics and produces more accurate threads
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Center Cutting N
Included Angle 60
Material Solid Carbide
Number of Flutes 3
Overall Length 2.0000" (2)
Chip Breaker N
Coating/Finish AlTiN Nano
Cutter Diameter Decimal 0.1000"
Shank Diameter 0.1250" (1/8)
Length of Cut 0.2180" (7/32)
Size 6-32
Weldon Flat N
Coolant Through N
Brand Harvey Tool
Single/Double End Single End
