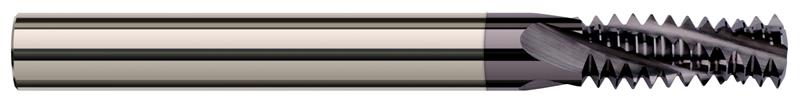

0.1800 in. Cutter Diameter x 0.5000 in. (1/2) Length of Cut 3 Flute AlTiN Nano Coated Carbide Multi-Form 1/4-28 Thread Milling Cutter for Hardened Steels

  • Item Code: 836746-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 46-68 Rc
    • Cuts internal and external 60 degree UN threads
    • Mill right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Variable helix design reduces chatter and harmonics and produces more accurate threads
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 60
Length of Cut 0.5000" (1/2)
Shank Diameter 0.1875" (3/16)
Single/Double End Single End
Coating/Finish AlTiN Nano
Coolant Through N
Overall Length 2.5000" (2-1/2)
Size 1/4-28
Brand Harvey Tool
Chip Breaker N
Material Solid Carbide
Center Cutting N
Cutter Diameter Decimal 0.1800"
Number of Flutes 3
Weldon Flat N
