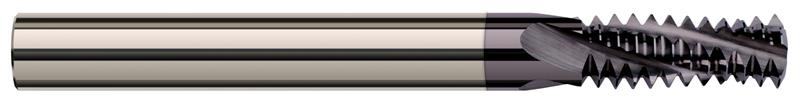

0.3350 in. Cutter Diameter x 0.8750 in. (7/8) Length of Cut 4 Flute AlTiN Nano Coated Carbide Multi-Form 7/16-20 Thread Milling Cutter for Hardened Steels

  • Item Code: 836776-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 46-68 Rc
    • Cuts internal and external 60 degree UN threads
    • Mill right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Variable helix design reduces chatter and harmonics and produces more accurate threads
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Material Solid Carbide
Coolant Through N
Single/Double End Single End
Included Angle 60
Number of Flutes 4
Center Cutting N
Cutter Diameter Decimal 0.3350"
Length of Cut 0.8750" (7/8)
Weldon Flat N
Overall Length 3.5000" (3-1/2)
Size 7/16-20
Shank Diameter 0.3750" (3/8)
Chip Breaker N
Coating/Finish AlTiN Nano
