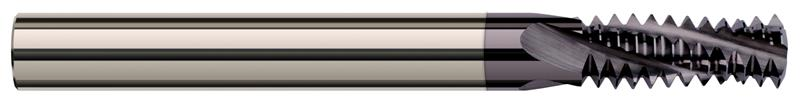

0.4950 in. Cutter Diameter x 1.2500 in. (1-1/4) Length of Cut 4 Flute AlTiN Nano Coated Carbide Multi-Form 3/4-16 Thread Milling Cutter for Hardened Steels

  • Item Code: 836798-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for threading hardened steels 46-68 Rc
    • Cuts internal and external 60 degree UN threads
    • Mill right hand and left hand threads
    • Able to cut larger threads of the same pitch
    • Variable helix design reduces chatter and harmonics and produces more accurate threads
    • Latest generation AlTiN Nano coating offers superior hardness and heat resistance
    • Select carbide grade for maximum tool life
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Decimal 0.4950"
Material Solid Carbide
Brand Harvey Tool
Coolant Through N
Shank Diameter 0.5000" (1/2)
Single/Double End Single End
Overall Length 3.5000" (3-1/2)
Included Angle 60
Length of Cut 1.2500" (1-1/4)
Number of Flutes 4
Weldon Flat N
Chip Breaker N
Coating/Finish AlTiN Nano
Center Cutting N
Size 3/4-16
