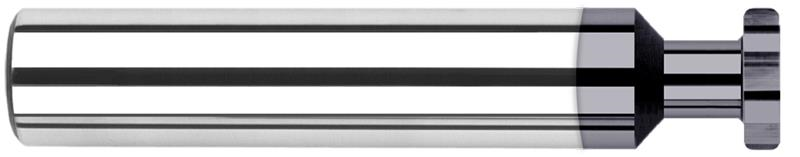

0.1870 in. Cutter Diameter x 0.0100 in. Radius x 0.0620 in. (1/16) Width x 0.0930 in. (3/32) Neck Length 6 Flute AlTiN Coated Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 837262-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.1870"
Number of Flutes 6
Radius Decimal 0.0100"
Neck Diameter 0.0620" (1/16)
Shank Diameter 0.1875" (3/16)
Top Corner Radius 0.01
Overall Length 2.0000" (2)
Coating/Finish AlTiN
Reach Multiple (0.5x)
Radial Depth of Cut 0.0520"
Type II
Brand Harvey Tool
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Neck Length 0.0930" (3/32)
