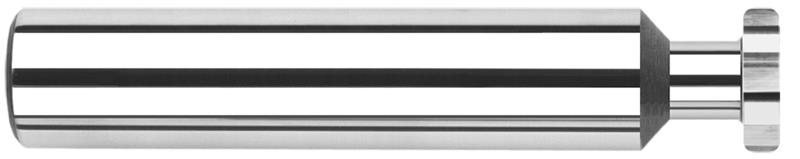

0.1870 in. Cutter Diameter x 0.0100 in. Radius x 0.0620 in. (1/16) Width x 0.0930 in. (3/32) Neck Length 6 Flute Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 837262
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Material Solid Carbide
Shank Diameter 0.1875" (3/16)
Top Corner Radius 0.01
Type II
Brand Harvey Tool
Cutter Width 0.0620" (1/16)
Neck Length 0.0930" (3/32)
Radial Depth of Cut 0.0520"
Decimal Diameter 0.1870"
Number of Flutes 6
Overall Length 2.0000" (2)
Radius Decimal 0.0100"
Reach Multiple (0.5x)
Coating/Finish None
Neck Diameter 0.0620" (1/16)
