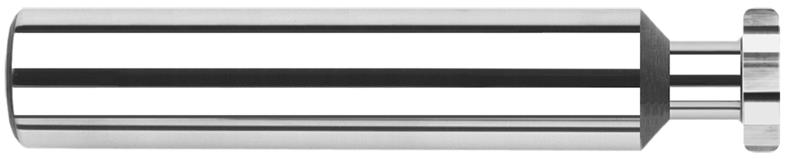

0.1250 in. (1/8) Cutter Diameter x 0.0100 in. Radius x 0.0310 in. (1/32) Width x 0.0620 in. (1/16) Neck Length 6 Flute Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 837631
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Reach Multiple (0.5x)
Decimal Diameter 0.1250"
Neck Length 0.0620" (1/16)
Radial Depth of Cut 0.0320"
Weldon Flat N
Brand Harvey Tool
Cutter Width 0.0310" (1/32)
Fractional Diameter 1/8"
Top Corner Radius 0.01
Neck Diameter 0.0400"
Number of Flutes 6
Overall Length 1.5000" (1-1/2)
Radius Decimal 0.0100"
Type II
Material Solid Carbide
Shank Diameter 0.1250" (1/8)
