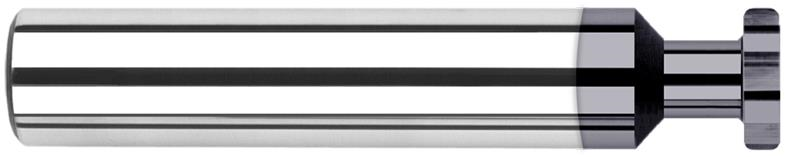

0.1250 in. (1/8) Cutter Diameter x 0.0100 in. Radius x 0.0620 in. (1/16) Width x 0.0620 in. (1/16) Neck Length 6 Flute AlTiN Coated Carbide Corner Radius Deep Keyseat Cutter

  • Item Code: 837662-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter 0.1250" (1/8)
Type II
Brand Harvey Tool
Coating/Finish AlTiN
Cutter Width 0.0620" (1/16)
Material Solid Carbide
Radial Depth of Cut 0.0320"
Reach Multiple (0.5x)
Decimal Diameter 0.1250"
Neck Length 0.0620" (1/16)
Fractional Diameter 1/8"
Overall Length 1.5000" (1-1/2)
Neck Diameter 0.0400"
Top Corner Radius 0.01
Number of Flutes 6
Radius Decimal 0.0100"
