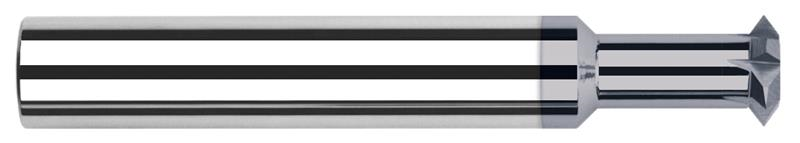

0.1250 in. (1/8) Cutter Diameter x 0.0630 in. Width x 0.1870 in. (3/16) Neck Length 6 Flute AlTiN Nano Coated Carbide Pointed Double Angle Shank Cutter

  • Item Code: 838808-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
    • Reduced neck for long reach machining
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.1870" (3/16)
Number of Flutes 6
Angle per Side 45
Coating AlTiN Nano
Fractional Cutting Diameter 1/8"
Neck Diameter 0.0620" (1/16)
Type I
Included Angle 90
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
Material Solid Carbide
Overall Length Fractional 1-1/2"
Cutter Width 0.0630"
Decimal Cutting Diameter 0.1250"
Overall Length Decimal 1.5000"
