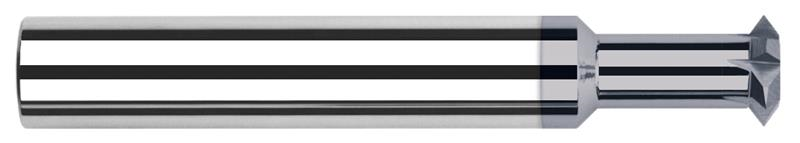

0.1875 in. (3/16) Cutter Diameter x 0.0950 in. Width x 0.3120 in. (5/16) Neck Length 6 Flute AlTiN Nano Coated Carbide Pointed Double Angle Shank Cutter

  • Item Code: 838812-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
    • Reduced neck for long reach machining
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Cutting Diameter 0.1875"
Included Angle 90
Neck Diameter 0.0930" (3/32)
Type I
Coating AlTiN Nano
Neck Length 0.3120" (5/16)
Shank Diameter 0.1875" (3/16)
Angle per Side 45
Cutter Width 0.0950"
Number of Flutes 6
Fractional Cutting Diameter 3/16"
Material Solid Carbide
Overall Length Decimal 2.0000"
Overall Length Fractional 2"
Brand Harvey Tool
