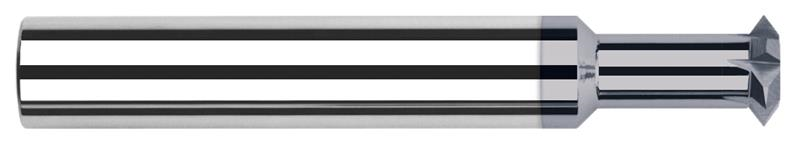

0.3750 in. (3/8) Cutter Diameter x 0.1250 in. (1/8) Width x 0.5000 in. (1/2) Neck Length 8 Flute AlTiN Nano Coated Carbide Pointed Double Angle Shank Cutter

  • Item Code: 838824-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
    • Reduced neck for long reach machining
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 90
Overall Length Fractional 2-1/2"
Type I
Cutter Width 0.1250" (1/8)
Number of Flutes 8
Neck Length 0.5000" (1/2)
Neck Diameter 0.2500" (1/4)
Brand Harvey Tool
Coating AlTiN Nano
Fractional Cutting Diameter 3/8"
Overall Length Decimal 2.5000"
Shank Diameter 0.3750" (3/8)
Decimal Cutting Diameter 0.3750"
Angle per Side 45
Material Solid Carbide
