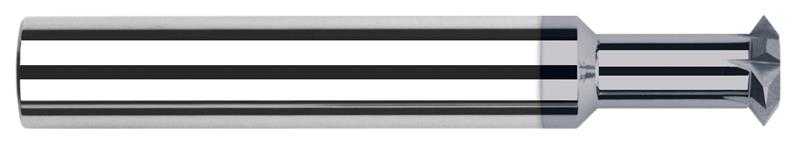

0.5000 in. (1/2) Cutter Diameter x 0.1880 in. Width x 0.5000 in. (1/2) Neck Length 8 Flute AlTiN Nano Coated Carbide Pointed Double Angle Shank Cutter

  • Item Code: 838832-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "v-groove"
    • Reduced neck for long reach machining
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.1880"
Fractional Cutting Diameter 1/2"
Neck Diameter 0.3120" (5/16)
Brand Harvey Tool
Decimal Cutting Diameter 0.5000"
Neck Length 0.5000" (1/2)
Shank Diameter 0.5000" (1/2)
Material Solid Carbide
Number of Flutes 8
Overall Length Fractional 3"
Overall Length Decimal 3.0000"
Angle per Side 45
Included Angle 90
Coating AlTiN Nano
Type I
