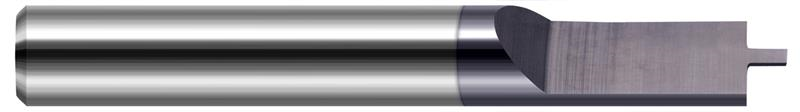

0.2500 in. (1/4) Shank Diameter x 0.1250 in. (1/8) Flat x 0 Deg. Included 1 Flute AlTiN Coated Carbide Square Parallel Engraver

  • Item Code: 839008-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Engraves a 90 degree vertical wall
    • Flat (F) represents flat generated in workpiece
    • Half-round drill style
    • Non-cutting transition radius at end of length of cut
    • Relieved for right hand milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Flat on Part 0.1250" (1/8)
Material Solid Carbide
Split Length 0.5000" (1/2)
Length of Cut 0.1900"
Brand Harvey Tool
Number of Flutes 1
Shank Diameter Decimal 0.2500"
Shank Diameter Fractional 1/4"
Weldon Flat N
Angle per Side 0
Coating AlTiN
Overall Length 2.5000" (2-1/2)
Included Angle 0
