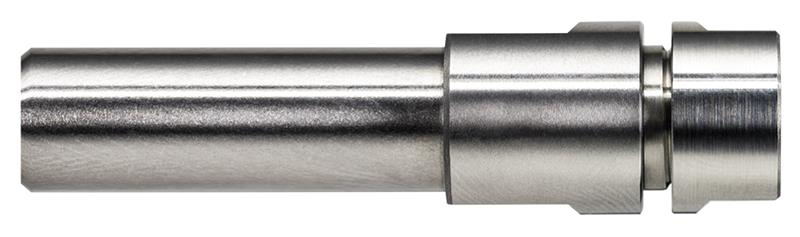

0.2500 in. (1/4) Arbor Diameter x 0.2500 in. (1/4) Shank Diameter x 1.4000 in. Shank Length Saw Arbor

  • Item Code: 84100-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum T.I.R.of .0001"
    • Straight shank allows for chucking at multiple depths
    • Key not included

Tech Specs

Back To Top
Neck Length 0.0450"
End Length 0.3000"
Shank Length 1.4000"
Flange Diameter 0.3940" (10 mm)
Nut Diameter 0.3940" (10 mm)
Nut Length 0.2500" (1/4)
Brand Harvey Tool
Coating None
Overall Length 2.2260"
Shank Diameter 0.2500" (1/4)
Material Solid Carbide
Neck Diameter 0.2500" (1/4)
