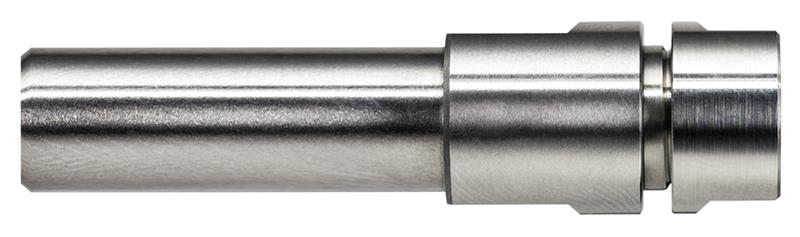

1.0000 in. (1) Arbor Diameter x 0.7500 in. (3/4) Shank Diameter x 2.0000 in. (2) Shank Length Saw Arbor

  • Item Code: 84103
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Maximum T.I.R.of .0001"
    • Straight shank allows for chucking at multiple depths
    • Key not included

Tech Specs

Back To Top
Neck Diameter 1.0000" (1)
Overall Length 4.0620" (4-1/16)
Flange Diameter 1.2500" (1-1/4)
Nut Diameter 1.2500" (1-1/4)
Nut Length 0.4370" (7/16)
Neck Length 0.1250" (1/8)
Shank Diameter 0.7500" (3/4)
Weldon Flat N
Chip Breaker N
Coating/Finish None
Brand Harvey Tool
End Length 0.5000" (1/2)
Shank Length 2.0000" (2)
Coolant Through N
Single/Double End Single End
Center Cutting N
