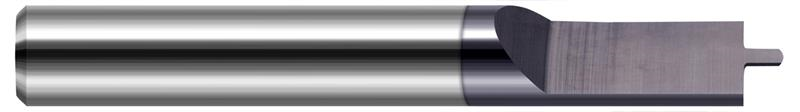

0.2500 in. (1/4) Shank Diameter x 0.0625 in. (1/16) Radius x 0 Deg. Included 1 Flute AlTiN Coated Carbide Ball Parallel Engraver

  • Item Code: 841408-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Engraves a 90 degree vertical wall
    • Radius on tip creates radius in the bottom of groove and improves strength
    • Half-round drill style
    • Non-cutting transition radius at end of length of cut
    • Relieved for right hand milling
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Split Length 0.5000" (1/2)
Coating AlTiN
Overall Length 2.5000" (2-1/2)
Radius Decimal 0.0625"
Radius Fractional 1/16"
Shank Diameter Decimal 0.2500"
Weldon Flat N
Brand Harvey Tool
Material Solid Carbide
Length of Cut 0.1900"
Included Angle 0
Number of Flutes 1
Angle per Side 0
Shank Diameter Fractional 1/4"
