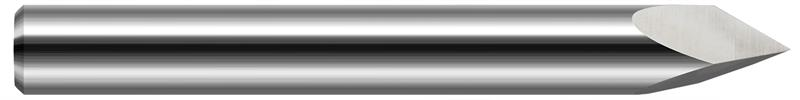

0.1250 in. (1/8) Shank Diameter x 20 Deg. Included Carbide Pyramid Point Engraver

  • Item Code: 842810
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 3 facet design increases tip strength
    • Ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Shank Diameter Fractional 1/8"
Overall Length 1.5000" (1-1/2)
Coating None
Shank Diameter Decimal 0.1250"
Angle per Side 10
Brand Harvey Tool
Included Angle 20
Material Solid Carbide
Length of Cut 0.3540"
Weldon Flat N
