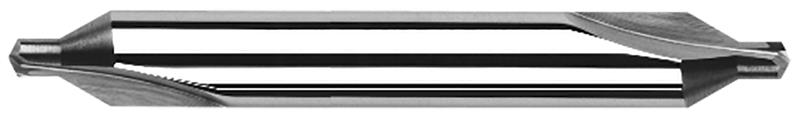

0.0469 in. (3/64) Drill Diameter x 100 Deg. Included 2 Flute Carbide #1 Double Ended Drill and Countersink

  • Item Code: 849530
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.0469"
Included Angle 100
Material Solid Carbide
Point Angle 118
Coating/Finish None
Number of Flutes 2
Single/Double End Double End
Overall Length Fractional 1-1/2"
Drill Length 0.0470" (3/64)
Overall Length Decimal 1.5000"
Fractional Diameter 3/64"
Length of Cut 0.0940"
Wire Diameter #1
Angle per Side 50
Shank Diameter 0.1250" (1/8)
Brand Harvey Tool
