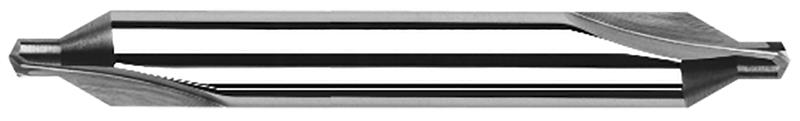

0.1094 in. (7/64) Drill Diameter x 100 Deg. Included 2 Flute Carbide #3 Double Ended Drill and Countersink

  • Item Code: 849550
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Drill Length 0.1090" (7/64)
Included Angle 100
Single/Double End Double End
Overall Length Fractional 2"
Coating/Finish None
Number of Flutes 2
Overall Length Decimal 2.0000"
Length of Cut 0.2010"
Material Solid Carbide
Point Angle 118
Brand Harvey Tool
Shank Diameter 0.2500" (1/4)
Angle per Side 50
Decimal Diameter 0.1094"
Fractional Diameter 7/64"
Wire Diameter #3
