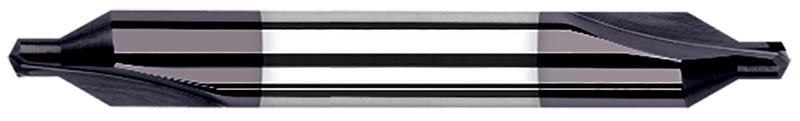

0.1250 in. (1/8) Drill Diameter x 100 Deg. Included 2 Flute AlTiN Coated Carbide #4 Double Ended Drill and Countersink

  • Item Code: 849560-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 60 degree, 82 degree, and 90 degree included angles - Plain Type
    • 2 Flutes
    • 118 degree included tip angle
    • Double-ended
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Length of Cut 0.2410"
Angle per Side 50
Decimal Diameter 0.1250"
Drill Length 0.1250" (1/8)
Wire Diameter #4
Fractional Diameter 1/8"
Material Solid Carbide
Number of Flutes 2
Overall Length Decimal 2.5000"
Point Angle 118
Shank Diameter 0.3125" (5/16)
Coating/Finish AlTiN
Included Angle 100
Single/Double End Double End
Brand Harvey Tool
Overall Length Fractional 2-1/2"
