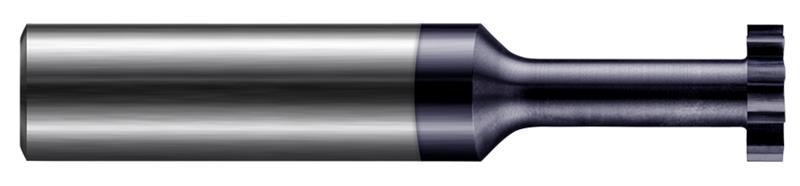

0.3125 in. (5/16) Cutter Diameter x 0.0930 in. (3/32) Width x 0.4680 in. (15/32) Neck Length 8 Flute AlTiN Nano Coated Carbide Square Keyseat Cutter for Hardened Steels

  • Item Code: 855650-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
    • Latest generation AlTiN Nano coating offer superior hardness and heat resistance
    • 90 degree included angle, cutting on angle only
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Material Solid Carbide
Decimal Diameter 0.3125"
Fractional Diameter 5/16"
Overall Length 2.5000" (2-1/2)
Cutter Width 0.0930" (3/32)
Neck Length 0.4680" (15/32)
Radial Depth of Cut 0.0630"
Reach Multiple (1.5x)
Number of Flutes 8
Shank Diameter 0.3125" (5/16)
Coating/Finish AlTiN Nano
Neck Diameter 0.1560" (5/32)
Type I
