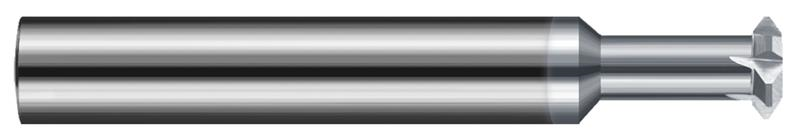

0.5000 in. (1/2) Cutter Diameter x 0.2075 in. Width x 0.3750 in. (3/8) Neck Length 6 Flute TiB2 Coated Carbide Picatinny Attachment Cutters

  • Item Code: 859232-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Mill the inverse form for the Picatinny Rail used for attachments
    • Cutting on entirety of angle and flat
    • Short reaches for maximum strength
    • 6 flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Diameter Decimal 0.5000"
Tip Flat 0.0210"
Number of Flutes 6
Overall Length 3.0000" (3)
Shank Diameter 0.5000" (1/2)
Single/Double End Single End
Cutter Width 0.2075"
Coating/Finish TiB2
Coolant Through N
Cutter Diameter Fractional 1/2"
Angle per Side 45
Brand Harvey Tool
Weldon Flat N
Included Angle 90
Neck Length 0.3750" (3/8)
Center Cutting N
Chip Breaker N
Material Solid Carbide
Neck Diameter 0.2500" (1/4)
