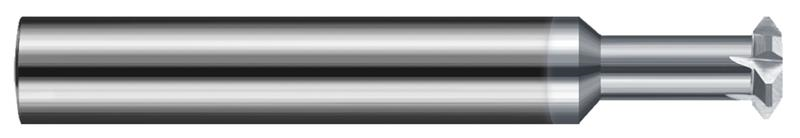

0.6250 in. (5/8) Cutter Diameter x 0.2075 in. Width x 0.5000 in. (1/2) Neck Length 6 Flute TiB2 Coated Carbide Picatinny Attachment Cutters

  • Item Code: 859240-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Mill the inverse form for the Picatinny Rail used for attachments
    • Cutting on entirety of angle and flat
    • Short reaches for maximum strength
    • 6 flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Chip Breaker N
Included Angle 90
Neck Length 0.5000" (1/2)
Shank Diameter 0.6250" (5/8)
Coating/Finish TiB2
Coolant Through N
Cutter Diameter Decimal 0.6250"
Cutter Diameter Fractional 5/8"
Tip Flat 0.0210"
Overall Length 3.5000" (3-1/2)
Angle per Side 45
Material Solid Carbide
Neck Diameter 0.3750" (3/8)
Number of Flutes 6
Center Cutting N
Weldon Flat N
Brand Harvey Tool
Cutter Width 0.2075"
Single/Double End Single End
