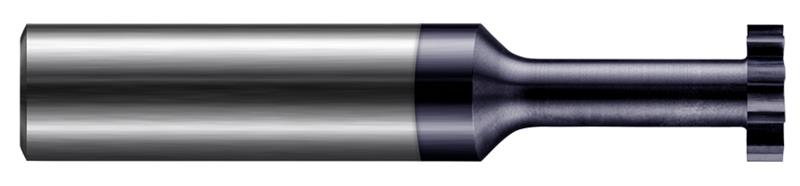

0.2500 in. (1/4) Cutter Diameter x 0.1250 in. (1/8) Width x 0.3750 in. (3/8) Neck Length 8 Flute AlTiN Nano Coated Carbide Square Keyseat Cutter for Hardened Steels

  • Item Code: 860195-C6
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
    • Latest generation AlTiN Nano coating offer superior hardness and heat resistance
    • 90 degree included angle, cutting on angle only
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Neck Length 0.3750" (3/8)
Material Solid Carbide
Coating/Finish AlTiN Nano
Neck Diameter 0.1250" (1/8)
Overall Length 2.5000" (2-1/2)
Cutter Width 0.1250" (1/8)
Reach Multiple (1.5x)
Fractional Diameter 1/4"
Number of Flutes 8
Type I
Shank Diameter 0.2500" (1/4)
Decimal Diameter 0.2500"
Brand Harvey Tool
Radial Depth of Cut 0.0480"
