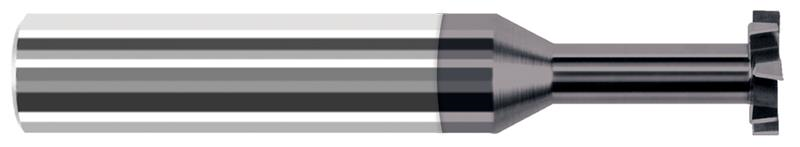

0.6250 in. (5/8) Cutter Diameter x 0.0050 in. Radius x 0.1250 in. (1/8) Width x 0.9380 in. Neck Length 8 Flute AlTiN Coated Carbide Corner Radius Stagger Keyseat Cutter

  • Item Code: 860460-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design for freer cutting action
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Alternating RH/LH shear flutes, RH cut
    • Relieved to allow cutting on?both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Material Solid Carbide
Neck Length 0.9380"
Radial Depth of Cut 0.1460"
Top Corner Radius 0.005
Reach Multiple (1.5x)
Decimal Diameter 0.6250"
Number of Flutes 8
Brand Harvey Tool
Cutter Width 0.1250" (1/8)
Shank Diameter 0.6250" (5/8)
Fractional Diameter 5/8"
Neck Diameter 0.3130"
Coating/Finish AlTiN
Overall Length 3.5000" (3-1/2)
Radius Decimal 0.0050"
Type I
